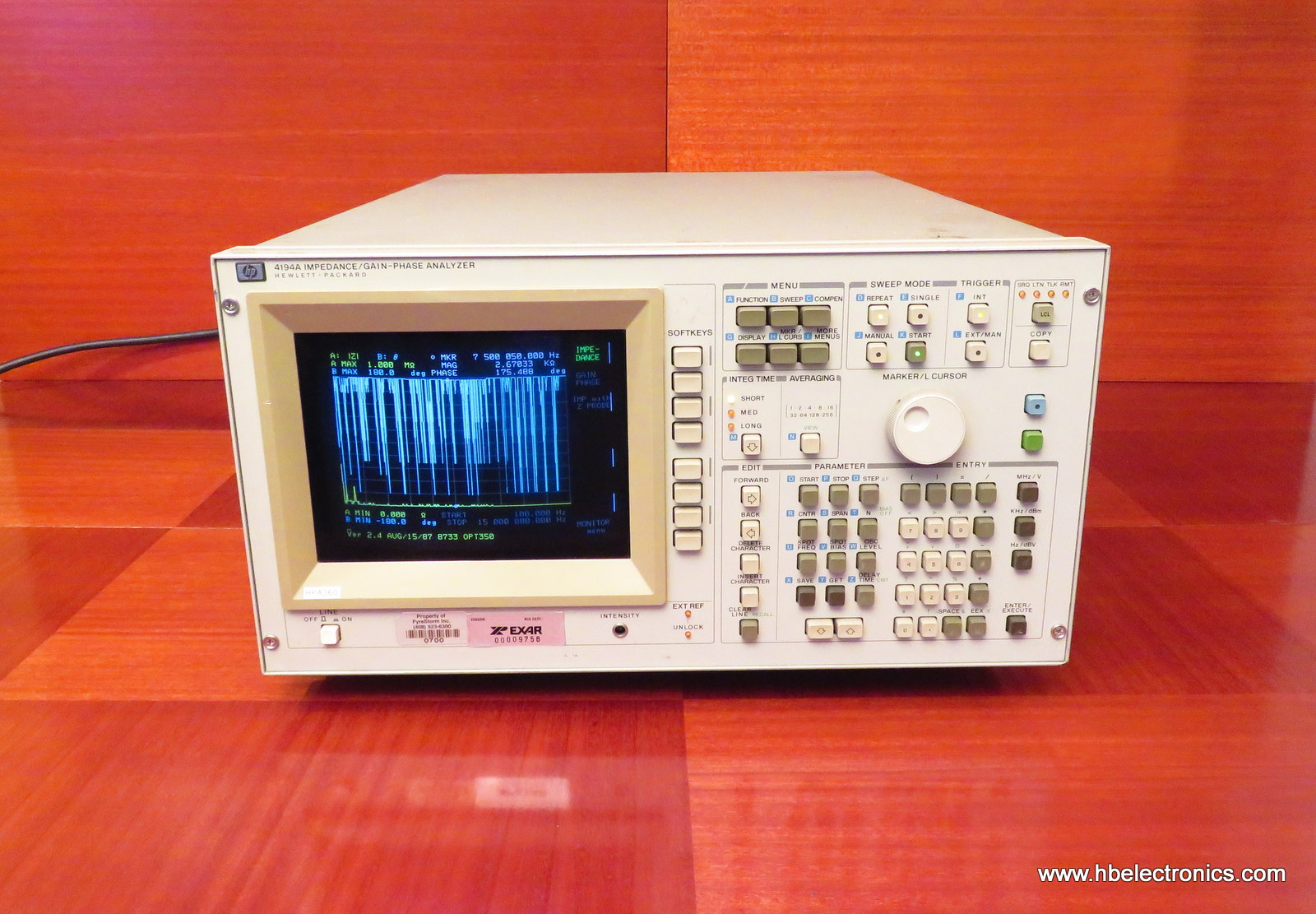

The Agilent 4194A impedance/gain-phase analyzer is an integrated solution for efficient measurement and analysis. Detailed impedance and transmission characteristics, including secondary parameter derivations, can be simply and quickly evaluated or tested. It is also fully programmable using Auto Sequence Programming (ASP). Desired measurements and computations, including graphics analysis, can be programmed simply by storing front-panel keystroke operations, allowing you to customize measurements, computation, and analysis functions. The Agilent 4194A also features high-accuracy and error elimination functions to ensure reliable measurements.
Features
- Wide range impedance measurement: 100 Hz to 40 MHz, 10mÙ to 100MÙ 10 kHz to 100 MHz, 0.1Ù to 1 MÙ, when used with the Agilent 41941A/B
- Gain-phase measurements: 10 Hz to 100 MHz, -107 dBm to +15 dBm, 0.1 dB resolution
- Frexible measurement, computation, and analysis capabilities on a color graphic display
Fully programmable
The analyzer is guaranteed to be in proper working order.
Price: $1,250.00
No sales tax outside California
Ships next business day
Stock# 305614338588
|
